Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
1 / 5
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply
Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply

Durable C4-Rated Liquid-Cooled C&I Battery Backup Storage Power System for Emergency Power Supply

Customization: Available
Container Size: 6500*2800*2896mm
Weight: 44t
Send Inquiry

Product Description

i

Overview & Basic Info

Model NO.
JSKJ-ESS-DC5000-A
Nominal Voltage
1331.2V
Warranty
5 Years
Nominal Capacity
3768ah
Cycle Life
8000
Cell Type
LFP Battery
Rated Energy
Expandable to 100MWh+
Cooling Method
Liquid + Air Dual Management
Waterproof Design
IP54 (Outdoor Durability)
Fire Detection
Temp, CO, Smoke Sensors
DC Voltage
1500V System Voltage
HS Code
8507600090
★

Product Description

Battery Storage System

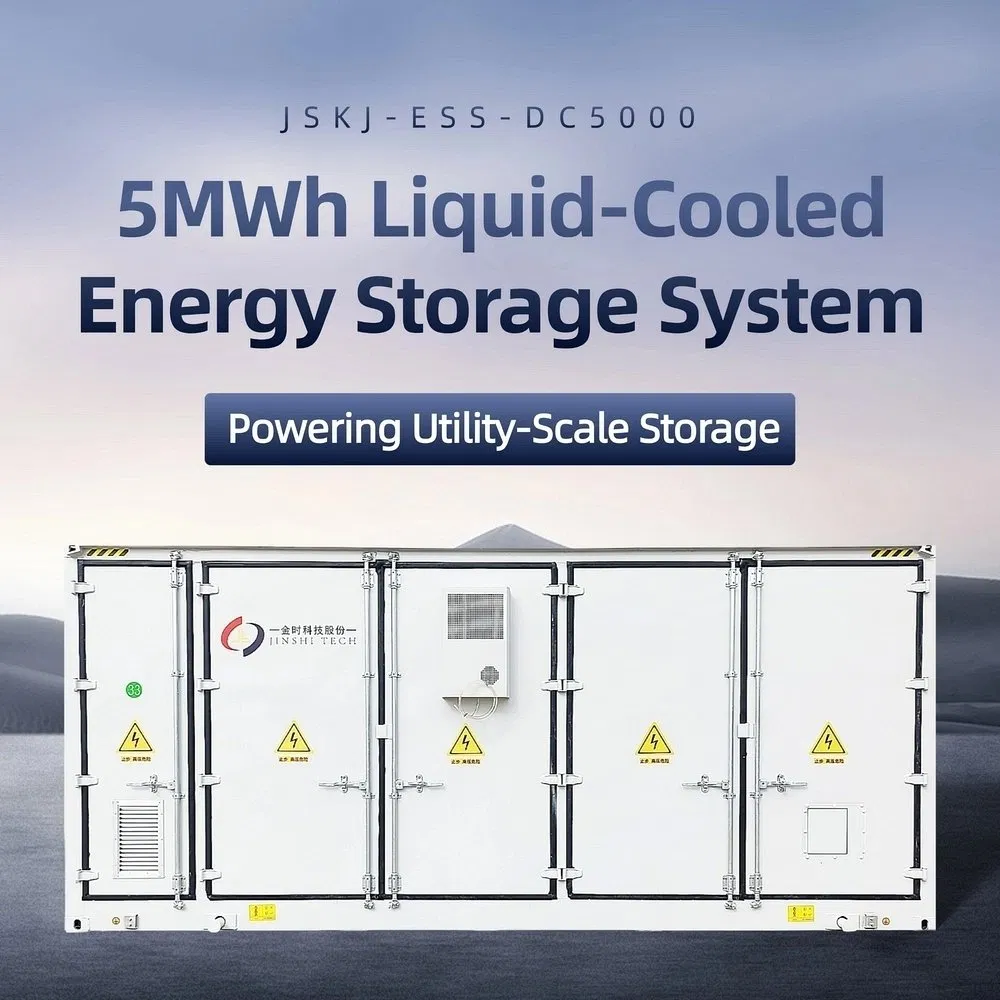

5MWH BATTERY STORAGE CONTAINER

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

Key Features

✔ 24/7 BMS (Battery Management System) Monitoring
✔ High-Frequency Regulation Compatibility
✔ Supports Fire Suppression: NOVEC 1230, Liquid Nitrogen
✔ Three-Level Fusing + Targeted Explosion Discharge
✔ Multi-Cabinet Parallel Connection for Scalability
✔ Optimized 1500V DC System Architecture

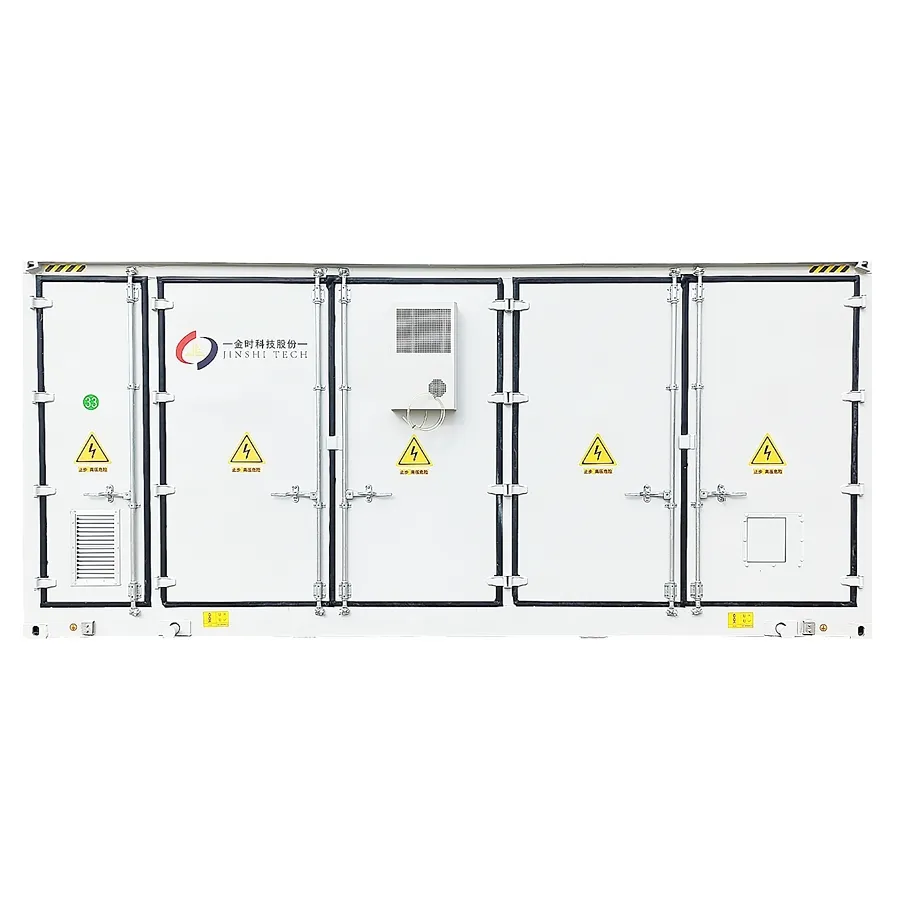

Storage Detail 1

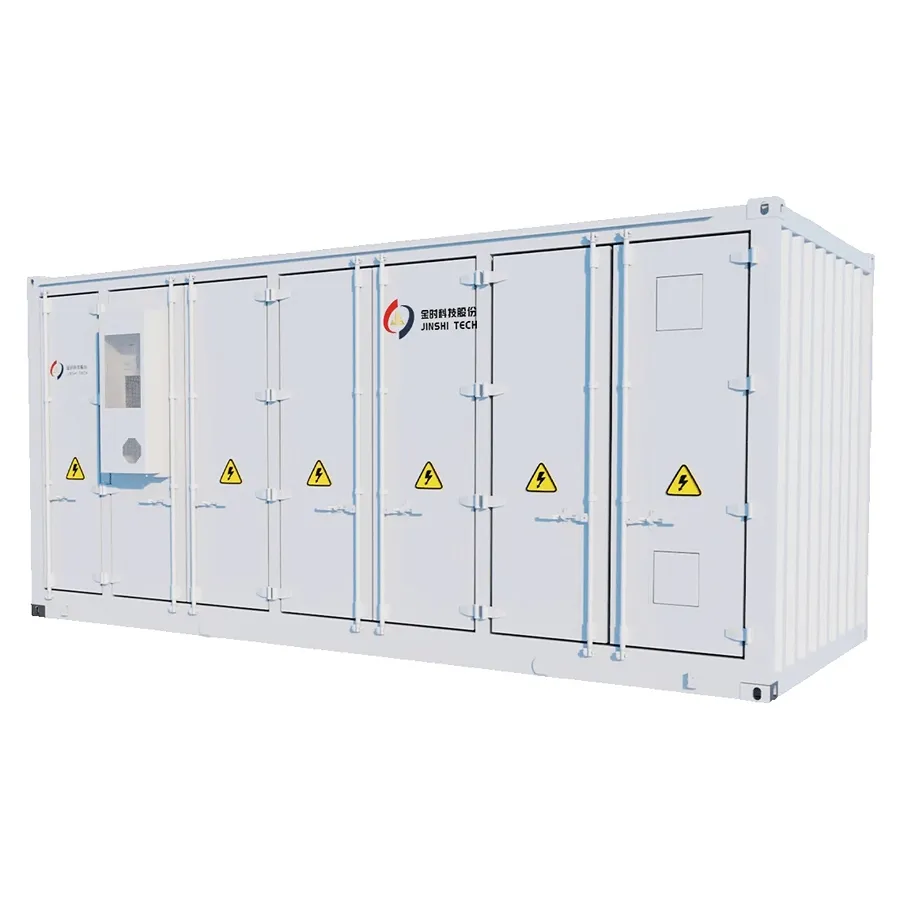

Storage Detail 2
⚙

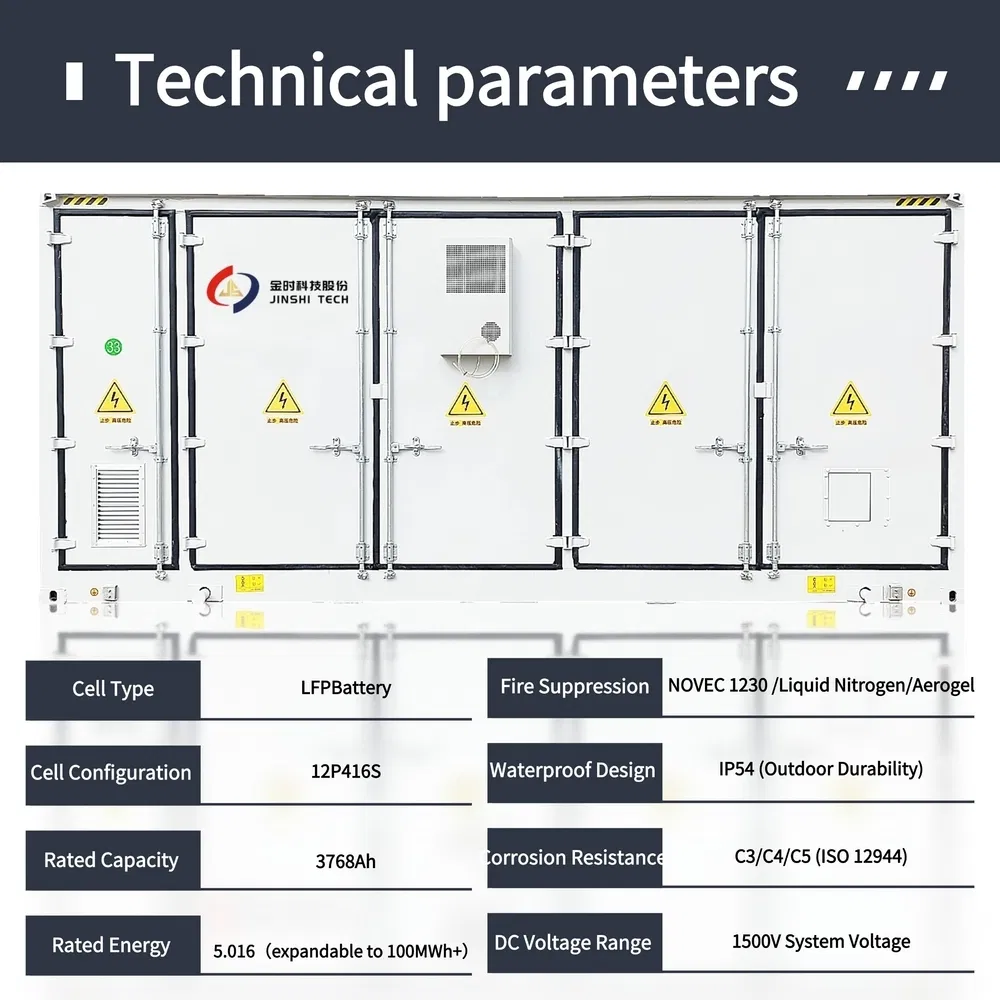

Technical Parameters

System Specification
Cell Configuration12P416S
Rated Capacity3768Ah
Rated Voltage1331.2V
Operating Voltage Range1164.8 - 1497.6V
Charge/Discharge Rate0.5P
Standard Charge/Discharge Current1884A / 1884A
Corrosion ResistanceC3/C4/C5 (ISO 12944)
System ArchitectureTriple Fire Protection + Triple BMS
Application ScenariosInland, Plateau, Coastal

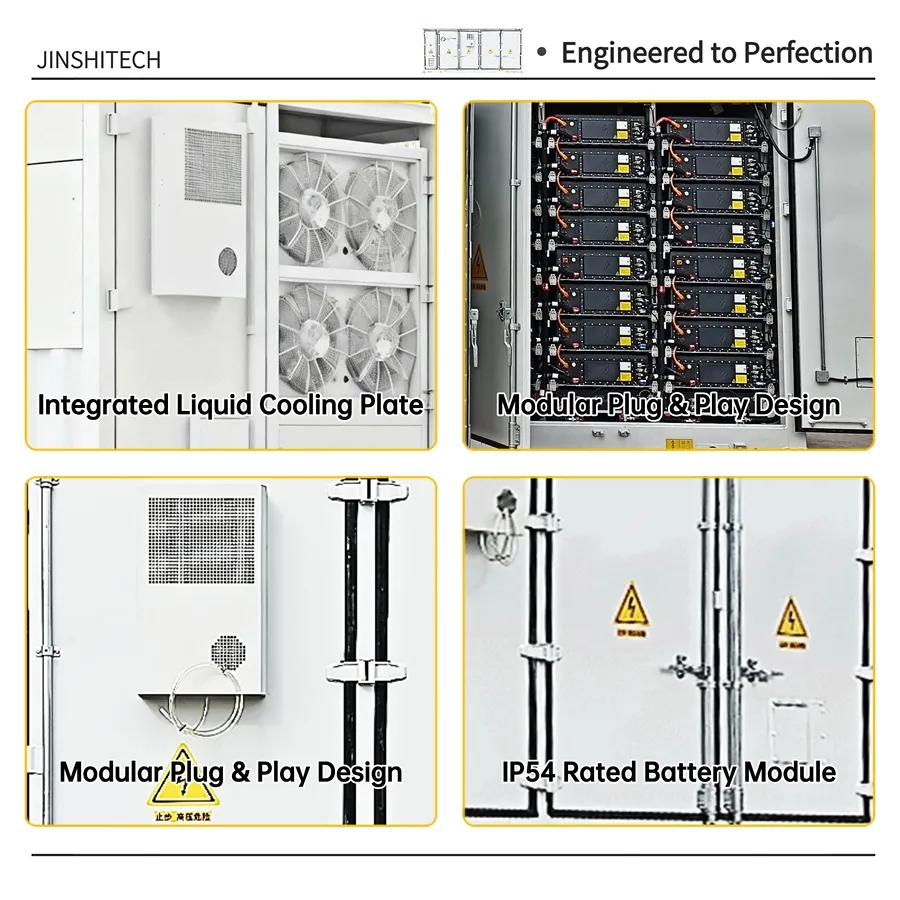

Internal view
Control system
📷

Detailed Gallery

Triple-Layer Fire Protection: Targeted explosion discharge design supporting advanced suppression agents.

Comprehensive Monitoring: Real-time temperature, CO, and smoke sensors with fail-safe redundancy.

Safety Feature
Structure Detail
Installation
Components
Full Container View
Scale Diagram
Exterior View
📦

Packaging & Delivery

Package Size
650cm * 280cm * 289.6cm
Gross Weight
44,000.00 kg
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a specialized manufacturer integrating industry and trade, focusing on large-scale battery energy storage systems.
Is customization available for the storage container?
Yes, we support comprehensive on-demand customization including capacity, dimensions, color, and integrated logo placement.
What fire suppression systems are supported?
Our systems are compatible with high-end fire suppression agents like NOVEC 1230, Perfluorohexanone, and Liquid Nitrogen for maximum safety.
What are the typical transportation methods for 44-ton containers?
We typically manage heavy-duty logistics via sea or land transport depending on the project location and infrastructure requirements.
How can I obtain a project-specific quotation?
Please provide your specific energy demands, application scenarios (coastal, inland, etc.), and site requirements for a detailed technical solution and quote.
What payment terms do you usually accept?
We support standard international payment methods including T/T, Western Union, and negotiated project-based payment cycles.
